Two generations, two known faults

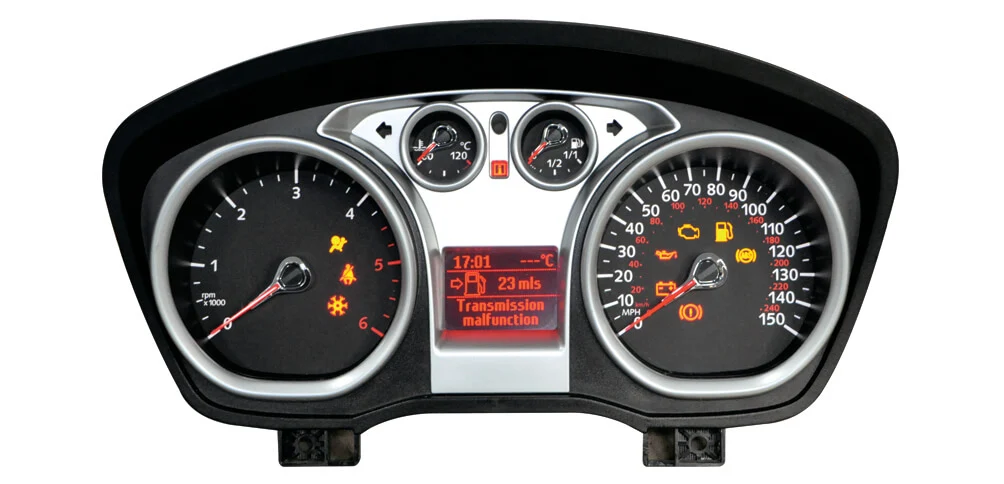

The Kuga Mk1 (2008–2012) shares its Visteon cluster with the Focus Mk2.5 facelift — the red-display high-line unit. It fails the classic way: flicker, blackout, gauges to zero, then a no-start with the immobiliser light flashing. The Kuga Mk2 (2013–2019) runs the Mk3-era twin-pod cluster, where the centre display fades, corrupts or goes blank.
Kuga symptoms
- Mk1: cluster dead, car won't start, immobiliser light flashing
- Mk1: gauges collapse to zero on the move; U1900/P1260 stored
- Mk2: centre display faded, ghosting, or completely blank
- Either: intermittent dash blackouts that recover — the warning stage
Repaired on your drive
- Call or message with your postcode and symptoms. Dead dash, flashing immobiliser light, gauges at zero, dashes for mileage — tell us what the car is doing and what it is (Focus, C-Max, Kuga, Transit, Galaxy, S-Max, Mondeo).
- We come to the car. Home, work or wherever it refused to start. The van carries the test gear, components and tools for these Visteon clusters.
- Diagnose first, at the car. We confirm the cluster is actually the fault before any repair — if it's the battery, wiring or another module, you get told straight.
- Board-level repair on site. The cluster comes out, the failed stage is rebuilt on the bench in the van, and it goes straight back into your car.
- Started, tested, driven. Gauges, mileage, warning lights and immobiliser all proven working before we leave — same day.
Typical call-out
Kuga Mk1 in Weybridge — garage-kept, 60k miles, dead dash
Low mileage doesn't spare these boards. Repaired at the house in one visit; the owner kept the genuine 60k cluster rather than gambling on a used unit with someone else's history.
Common questions
Kuga questions
Which Kuga years are affected?
Kuga Mk1 (2008–2012/13) uses the Focus Mk2.5 facelift cluster family (8V4T/8U4T-10849) — dead dashes and no-starts. Kuga Mk2 (2013–2019) uses the Mk3-era twin-pod cluster and suffers the fading/blank centre display.
The dash died on the motorway — is the car safe?
Pull over when safe and don't force it: when the cluster drops off the network the engine can cut without warning. Then call us — we come to wherever the car ends up, which is the whole point of a mobile cluster service.
Will my keys still work after the repair?
Yes. Your original cluster is repaired, not replaced, so key coding and immobiliser pairing stay factory.
