Home / Cluster repair / Fiat 500 screen repair

Specialist Fiat 500 · 500C · Abarth 500/595/695 · Mobile across London & the South-East

Fiat 500 dash screens,
replaced, not the cluster.

The 500's centre display is the one part of its cluster with a shelf life. When it fades, scrambles or dies, we drive to you, fit a new LCD in your original unit and hand the car back reading its true mileage — usually inside the hour.

Call 07550 006 999 WhatsApp a photo of your dash

Free fixed quote by reg · 7 days

Fixed quote in minutes.

Known failure

Eight ways the screen dies.
One repair.

01 / Blank

No mileage. No fuel. Nothing.

Needles sweep, warning lamps light, and the middle of the dial is black. Total LCD failure — and still nothing wrong with the cluster behind it.

Most common

02 / Fading

Washed out in daylight.

Contrast drains until the odometer is a rumour. Bright days make it invisible, night makes it barely better. This is the bond between ribbon and glass letting go — it only ever gets worse.

Early stage

03 / Heat

Dies warm, returns cold.

Works first thing, gone by the school run, back the next morning. Thermal expansion is breaking the contact — the endgame is a screen that doesn't come back.

Tell-tale sign

04 / Segments

Digits half-missing.

Eights read as sixes, the trip looks like code. Individual segment lines have dropped off the glass. The stored numbers are fine; the display of them isn't.

Progressive

05 / Flicker

Ghosting and dropouts.

The display stutters, shadows, or blinks whole sections. Vibration and temperature both trigger it. A failing LCD, announcing itself.

Gets worse

06 / Backlight

Glow but no digits.

The panel lights up; nothing is written on it. The backlight outlives the glass — proof the fault is the LCD itself, not power or wiring.

Diagnostic clue

07 / Data

Needles fine, numbers gone.

Speed and revs still read — they're driven by the working side of the cluster. Fuel level, range, clock, temperature and mileage all lived on the screen you can no longer see.

Why it matters

08 / Creep

Fainter every month.

Still readable — just less than last summer. Bond degradation is one-directional. Swapping the screen at this stage is the same job at the same price, minus the weeks of squinting.

Fix it early

Read first

Why we swap the glass,
not the cluster.

The 2007-on 500, 500C and every Abarth 500/595/695 share one instrument cluster family — and one design flaw. The centre LCD's ribbon is bonded directly to the glass, the dashboard cycles from frozen to baking thousands of times, and the bond fatigues. Segments drop. Contrast fades. Then one day the odometer, fuel bars, range, clock and warning text are simply gone, while the needles carry on as if nothing happened.

Fiat's fix is the whole cluster: ordered in, fitted, proxi-aligned, often weeks end to end. Ours is the component that actually failed. We come to you, remove the cluster, lift the dead LCD off the board and seat a new one — the mileage memory, immobiliser pairing and coding never leave the car. About an hour, kerbside, done.

In Surrey? Our sister operation Car Services & Repairs Surrey runs the same doorstep repair in every Surrey town, on the same number.

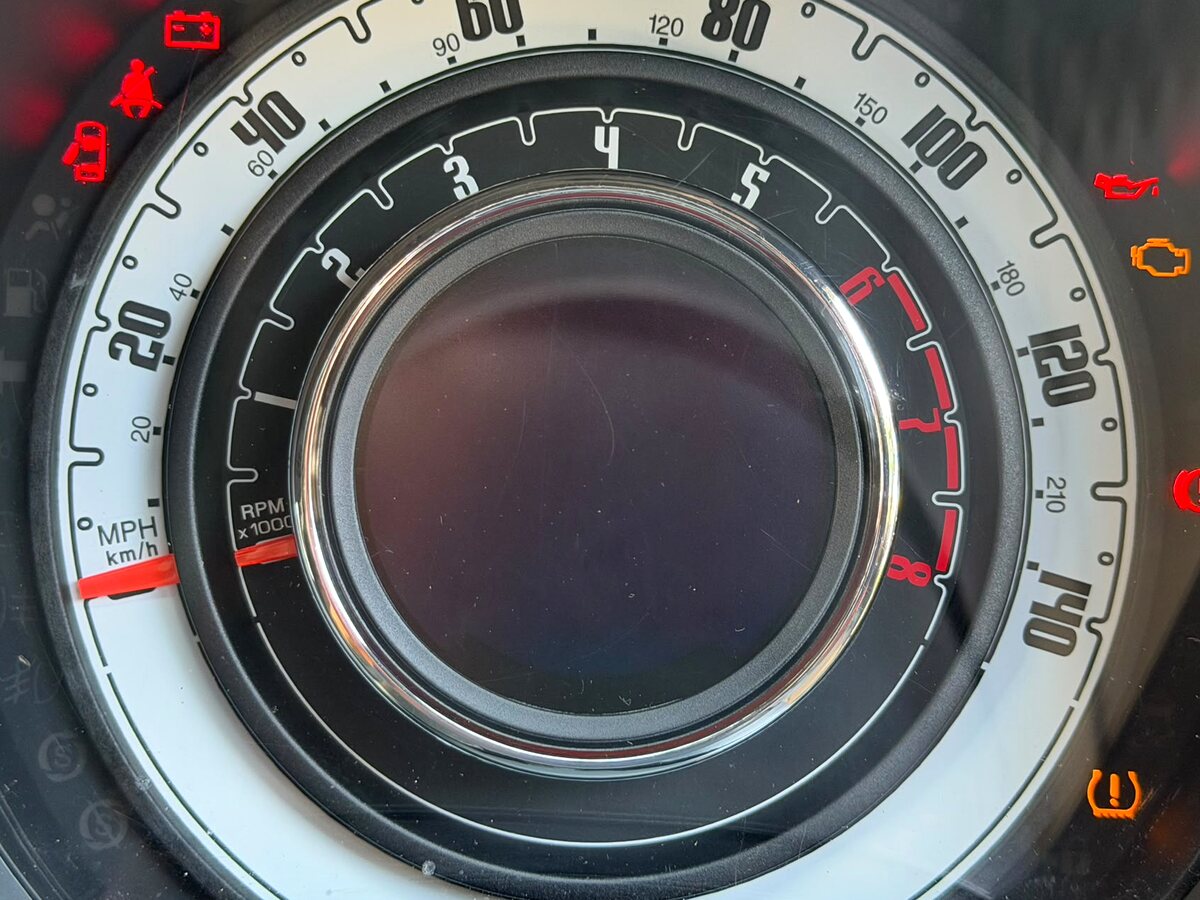

Fiat 500 instrument cluster with ignition live: warning lamps on, centre display totally dead — Arrival state: lamps on, screen dead.

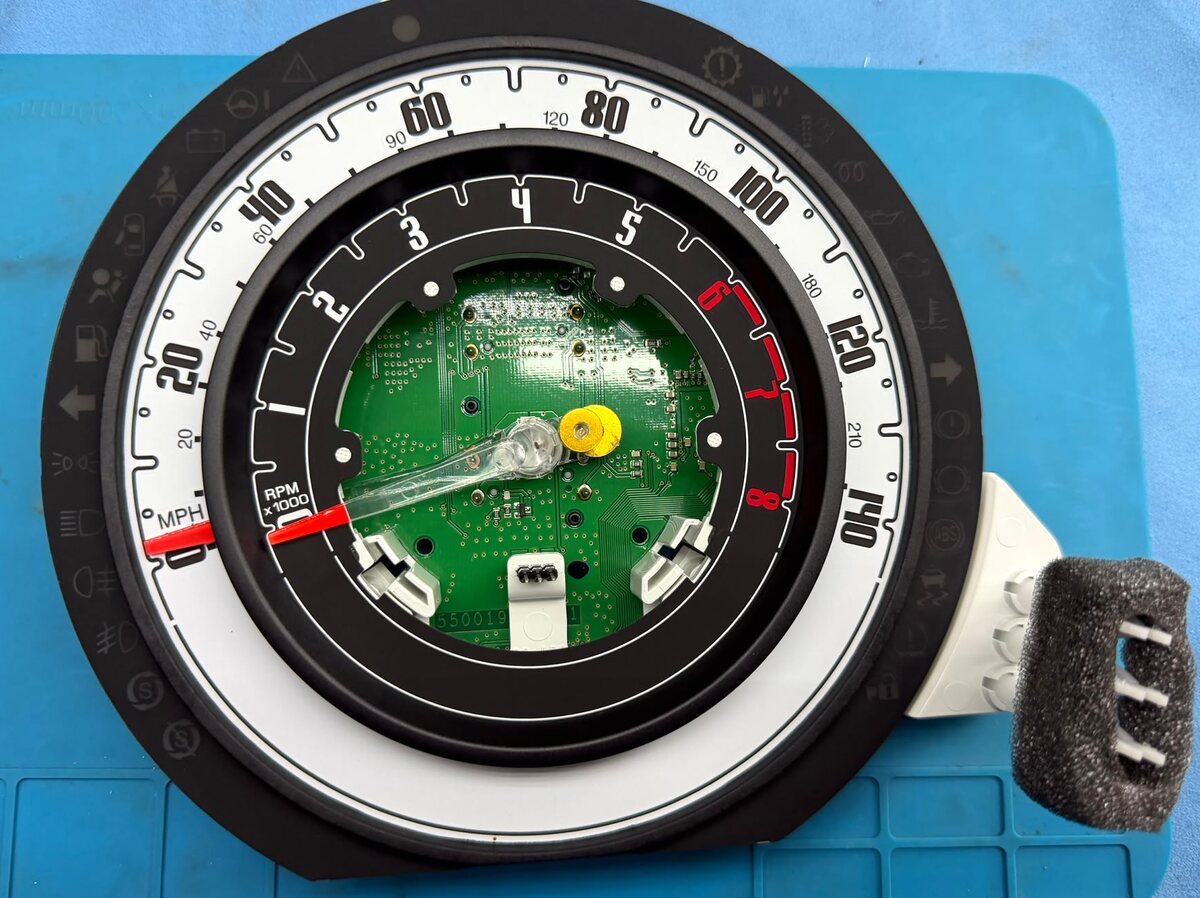

Inside a Fiat 500 cluster: failed LCD lifted off, main board and mileage memory untouched — Old glass off — board and mileage memory untouched.

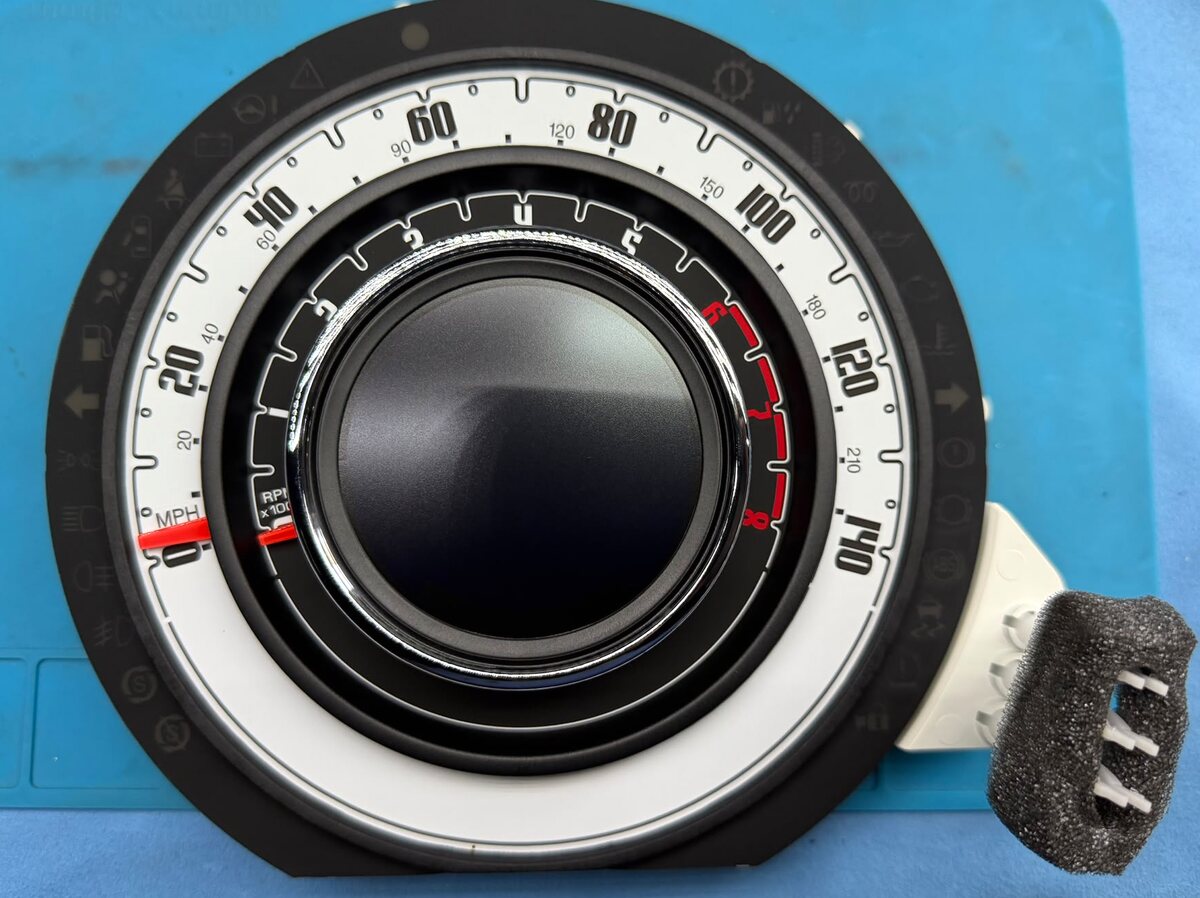

Replacement LCD seated in the original Fiat 500 cluster ready for reassembly — New screen seated in the original cluster.

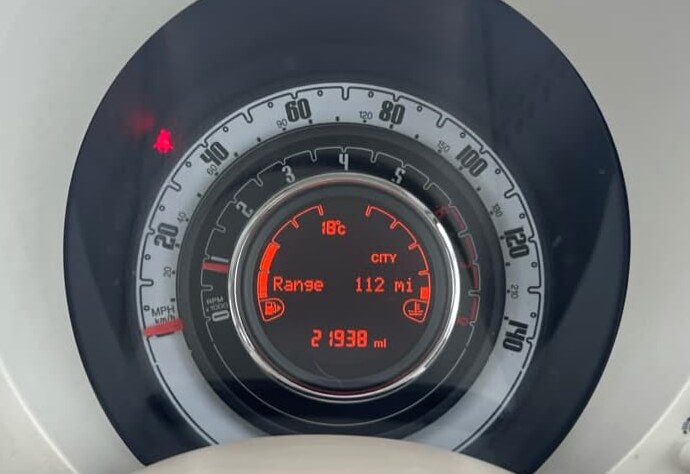

Finished Fiat 500 cluster in the car, display reading range, temperature and correct mileage — Refitted: range, temp and true mileage back on the dial.

Fitment

Every 500.
Every Abarth.

A / 500 & 500C

2007 onwards, every trim.

Pop, Lounge, Sport, S, Dolcevita — hatch or convertible, petrol, diesel or TwinAir. Same cluster family, same screen, same one-hour fix.

Core fitment

B / Abarth

500, 595 & 695 included.

Turismo, Competizione, Esseesse — the Abarth dashboard fails exactly like the standard car's, and takes exactly the same replacement screen.

Same-day too

C / Later cars

TFT dashboards covered.

Facelift cars running the colour TFT are a different display with different failures — we repair those clusters as well. Confirm by reg and we bring the right parts.

Ask by reg

Coverage

London and the South-East,
town by town.

Wimbledon-based, mobile every day. Pick your town for the local page — each one is a real service run, not a pin on a map:

Straight pricing

One fixed price,
quoted by reg.

Fiat 500 screen replacement

Fixed price by reg — agreed before we travel

No exchange units, no postage, no waiting weeks for a dealer cluster and an alignment slot. The price agreed on the phone is the price — and the visit usually lands within days.

Call 07550 006 999

Questions

Fiat 500 screen repair,
explained.

How long does a Fiat 500 screen swap take?

Around an hour kerbside for the standard segment-display cluster. The unit comes out through the instrument binnacle, the screen is swapped on the bench in the van, and everything is refitted and tested with the ignition live before we leave your town.

Does replacing the screen touch my mileage?

No. The odometer reading is held in memory on the cluster's circuit board. The LCD is only the window it shows through — swap the glass and the same stored figure lights up on the new screen.

What will it cost?

Give us the reg and postcode and you get a fixed price before we travel — it doesn't move on the day. It comes in at a fraction of the whole-cluster route, which also usually means parts on order and weeks of waiting rather than a single visit.

Which models get this fault?

The 2007-onwards 500 and 500C across all trims, plus Abarth 500, 595 and 695 — one cluster family, one shared weakness. Later cars with the colour TFT dash are a different display, and we handle those too: confirm by reg when you book.

Will the car need coding or alignment afterwards?

Nothing. That's the entire point of keeping your original cluster: the immobiliser pairing, proxi configuration and mileage never leave the car. Reconnect, test, drive.

The dealer quoted a whole new cluster. Are they wrong?

They're quoting the only remedy on their system — a complete unit, ordered in and aligned to the car. Nine times out of ten the board in your cluster is perfect and only the glass has failed. We fix the part that's actually broken.

What if the screen isn't the real problem?

Then we tell you, before any work. The van carries full diagnostics, so if a 500 turns out to have a supply, wiring or cluster-board fault instead, you get an honest answer and a price for the right fix — not a screen you didn't need.

Why do these screens die so young?

Heat cycling. The ribbon is bonded straight onto the glass, the dash bakes in summer and roasts by heater in winter, and the bond fatigues until segments start dropping. It's a design-life issue, not something you caused.

Get in touch

Free quote.

The quickest way to get a price is to call us — or WhatsApp with your reg and the symptoms. Most quotes back within minutes, 7 days a week.
